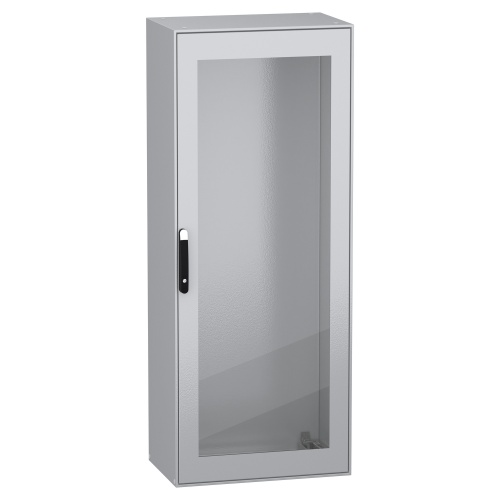

Schneider Electric NSYSM20850T Spacial SM Floor-standing Sheet Steel Enclosure – , 78.74″ x 31.5″ x 19.69″ (HxWxD)
$2,414$2,896 (-17%)
Schneider Electric NSYSM20850T Spacial SM enclosure is a front-accessible, floor-standing product. It features a sturdy body made of sheet steel and a door with secure glass. The door has a reversible 120° opening and a 4-point lock system with a black handle. The enclosure is gray in color (RAL 7035) and includes a…
Schneider Electric NSYSM20850T Spacial SM enclosure is a front-accessible, floor-standing product. It features a sturdy body made of sheet steel and a door with secure glass. The door has a reversible 120° opening and a 4-point lock system with a black handle. The enclosure is gray in color (RAL 7035) and includes a standard gland plate. Removable parts like the door and mounting plate are secured with screws.
Specifications
| Enclosure Mount Type | Free-Standing |
|---|---|
| Enclosure Depth | 19.69" |
| Enclosure Width | 31.5" |
| Manufacturer | Schneider Electric |
| Enclosure Height | 78.74" |
| Enclosure Composition | Steel |
| Component | Steel Enclosure |
| Enclosure Number of Doors | 1 Door |
| Enclosure Mounting Plate | Without Mounting Plate |
| Enclosure Door Type | Glass |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features
Spacial SM monobloc compact steel enclosure with glazed door

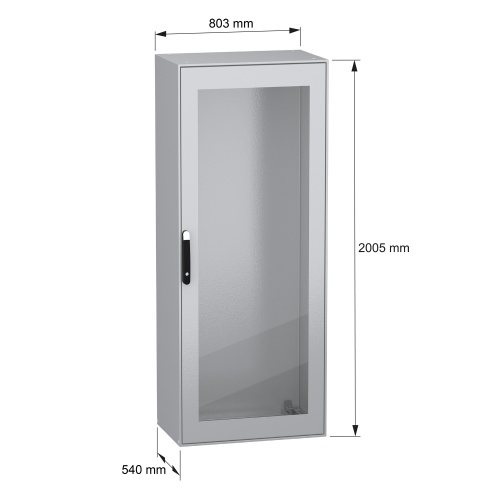

2000 x 800 x 500 mm

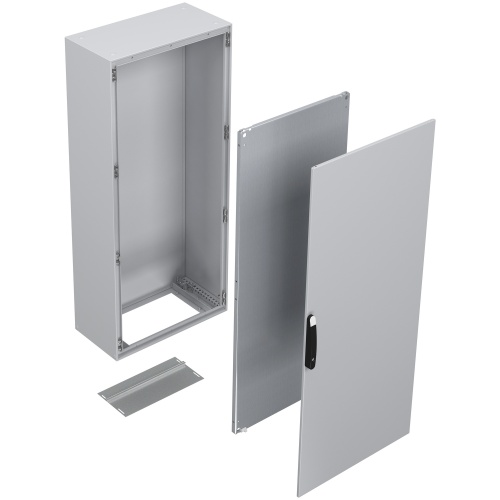

Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK08, Grey RAL 7035
4 mounting plate support brackets included.
