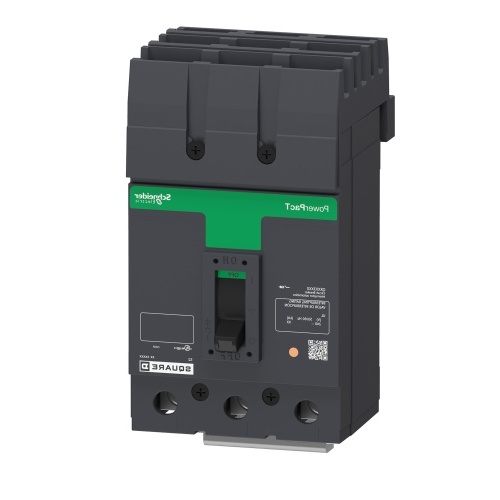

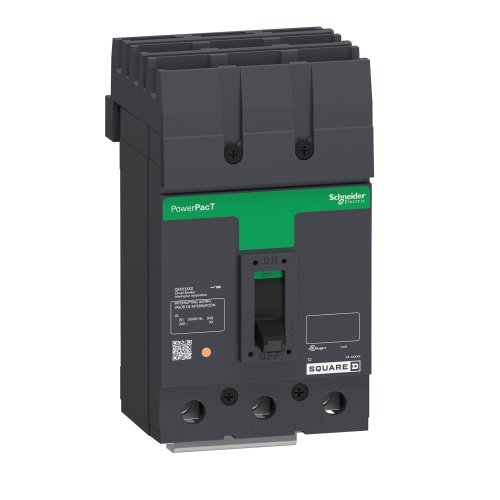

Schneider Electric QDA322256 Circuit breaker, PowerPacT Q, 225A, 3 pole, 240VAC, 25kA
$1,576$1,892 (-17%)
Circuit breaker, PowerPacT Q, 225A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic, 80%, CBA
Circuit breaker, PowerPacT Q, 225A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic, 80%, CBA
Specifications
| Amperage (Molded Case Breaker) | 225 Amp |
|---|---|
| Maximum Voltage (Molded Case Breaker) | 240 VAC |
| Interrupt Rating (Molded Case Breaker) | 25 Ka |
| Manufacturer | Schneider Electric |
| Manufacturer | Square D |
| Component | Molded Case Circuit Breaker |
| Poles (Molded Case Breaker) | 3 Pole |
Features
Available in 2-3 pole design
Available from 75-250A at up to 240 VAC
Interrupting ratings (AIR) include B-10 kA, D-25 kA, G-65 kA and J-100 kA at 240 VAC. 3P QJ are rated at 208Y/ 120 VAC only
Available in standard (80%) rating only
Field-installable handle padlock attachment available for locking in On or Off position and may be used with available mechanical interlocks
Available in Unit-mount for cabled or bus-mounted applications or I-line for use in I-line panel boards and switchboards
2-3 pole automatic molded case switches available at 225A
UL 489 Listed, CSA, ANCE, IEC certified for worldwide applications
