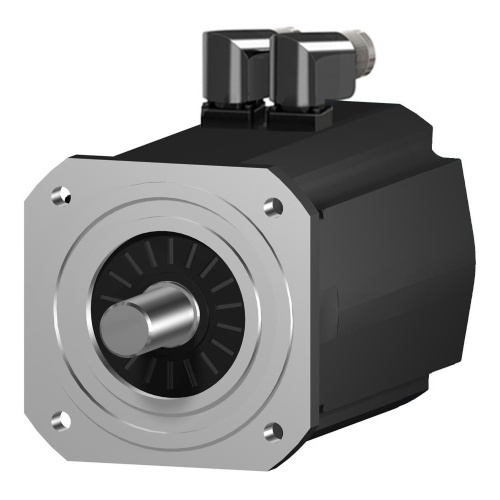

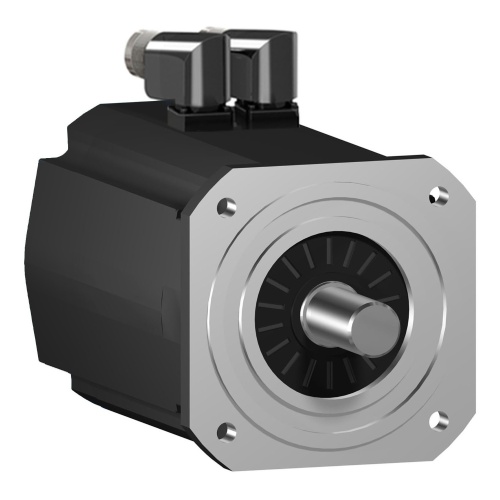

Schneider SH32053P12F2200 Servo Motor, 14.2 HP, 3800 RPM, 480V
$13,575
Schneider Electric SH32053P12F2200 is a three-phase motor with a maximum mechanical speed of 3800 rpm and a maximum radial force of 4500 N at 1000 rpm. It has a length of 21.20 in and a shaft diameter of 1.50 in. The motor has a continuous stall torque of 835.51 lbf.in and a peak stall torque of 2920.74 lbf.in. It…
Schneider Electric SH32053P12F2200 is a three-phase motor with a maximum mechanical speed of 3800 rpm and a maximum radial force of 4500 N at 1000 rpm. It has a length of 21.20 in and a shaft diameter of 1.50 in. The motor has a continuous stall torque of 835.51 lbf.in and a peak stall torque of 2920.74 lbf.in. It also features a holding brake and a centring collar. The motor has a nominal speed of 500 rpm at 115 V single phase and 2400 rpm at 480 V three phase. The motor has a nominal output power of 4450 W at 115 V single phase and 10100 W at 480 V three phase. It has a continuous stall current of 33.2 A and a holding torque of 708.06 lbf.in.
Specifications
| Manufacturer | Schneider Electric |
|---|
Features
Lexium SH3 is dynamic in its performance, with a higher power density of up to 9000 rpm. It features different flange dimensions, setups, and an additional connectio
