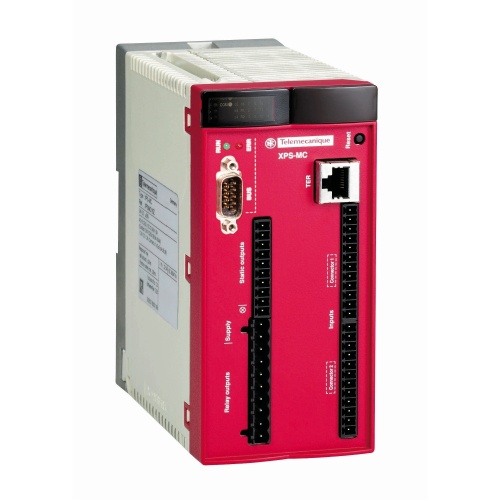

Schneider Electric XPSMC16ZC safety controller XPS-MC – 24 V DC – 16 input – 32 LEDs signalling

This product is part of the Preventa XPS MP, XPS MC, XPS MCM range, an offer of safety controllers

This safety controller provides 16 inputs and 32 LEDs for signalling

It is a safety controller with a power consumption of 12W, control circuit voltage of 28.8V and a rated supply voltage of 24V DC

Supported communication port protocols are Modbus with RJ45 port, CANopen with 9-way SUB-D male port

It is an IP20 rated product

Its dimensions are 74mm (Width) x 153mm (Depth) x 151.5mm (Height)

It weighs 0.82kg

It is designed to provide a solution for safety applications requiring conformity to Performance Level PL e/Category 4 EN/ISO 13849-1 and SIL3 EN/IEC 61508

This product is certified by UL, CSA and TUV

It meets EN 574/ISO 13851, EN 1760-1/ISO 13856-1, EN/IEC 61496-1, EN/IEC 60204-1, EN/IEC 60947-5-1, EN 954-1/EN/ISO 13849-1 and IEC 61508 standards

Simple, it features redundancy principle micro-processor based technology to provide advanced functions, flexibility regarding the choice of safety function and more precise diagnostics are just some of its advantages

Safety controller XPS MC is configured with a simple software environment where functions are mapped to the various controller outputs according to the application requirements.
