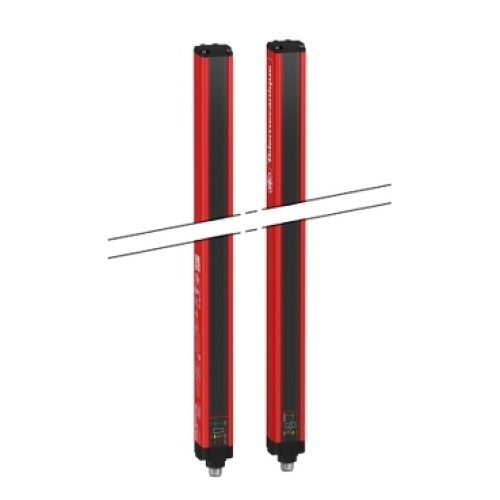

Schneider XUSL4E14F181N Transmitter-receiver system 1 – 6 m,0 – 3 m Type 4 SIL 3 For finger protection Safety light curtain type 4
$2,650$3,180 (-17%)
Schneider XUSL4E14F181N Transmitter-receiver system 1 – 6 m,0 – 3 m Type 4 SIL 3 For finger protection DC,Safety outputs OSSD,Solid-state,PNP 24 VDC 1 Multi-colour LED transmitter,2 Dual colour LEDs receiver DC,Automatic,Manual IP65,IP67 Aluminium,Polycarbonate,Polypropylene Test,Muting through external safety module…
Schneider XUSL4E14F181N Transmitter-receiver system 1 – 6 m,0 – 3 m Type 4 SIL 3 For finger protection DC,Safety outputs OSSD,Solid-state,PNP 24 VDC 1 Multi-colour LED transmitter,2 Dual colour LEDs receiver DC,Automatic,Manual IP65,IP67 Aluminium,Polycarbonate,Polypropylene Test,Muting through external safety module XPSLCMUT1160,LED display of operating modes and faults Safety light curtain type 4
Specifications
| Manufacturer | Telemecanique |
|---|---|
| (Instrument-Sensor) Supply Voltage | 24 VDC |
| (Instrument-Sensor) IP Protection | IP65 |
| (Instrument-Sensor) IP Protection | IP67 |
| (Instrument-Sensor) Connection Type | Male Connector |
| (Instrument-Sensor) Output Signal Type | DC |
| (Instrument-Sensor) Type | Transmitter-Receiver System |
| (Instrument-Sensor) Type of Operator | DC |
| (Instrument-Sensor) Type of Operator | Automatic |
| (Instrument-Sensor) Type of Operator | Manual |
| (Instrument-Sensor) Standards | Type 4 SIL 3 |
| (Instrument-Sensor) Application | For Finger Protection |
| (Instrument-Sensor) Connection Type | 5 Pins Transmitter |
| (Instrument-Sensor) Connection Type | 8 Pins Receiver |
| (Instrument-Sensor) Indication | 1 Multi-Colour LED Transmitter |
| (Instrument-Sensor) Indication | 2 Dual Colour Leds Receiver |
| (Instrument-Sensor) Output Signal Type | Safety Outputs OSSD |
| (Instrument-Sensor) Output Signal Type | Solid-State |
| (Instrument-Sensor) Output Signal Type | PNP |
| (Instrument-Sensor) Size | 1810 mm |
| (Instrument-Sensor) Measurement Response Time | 23.5 Ms |
| Component | Light Curtain |
| (Instrument-Sensor) Temperature Range | -10 – 55°C |
| (Instrument-Sensor) Temperature Range | -20 – 55°C |
| (Instrument-Sensor) Span | 1 To 6 M |
| (Instrument-Sensor) Span | 0 To 3 M |
Features
2 PNP outputs
Operating temperature range: -20 °C…+55 °C
