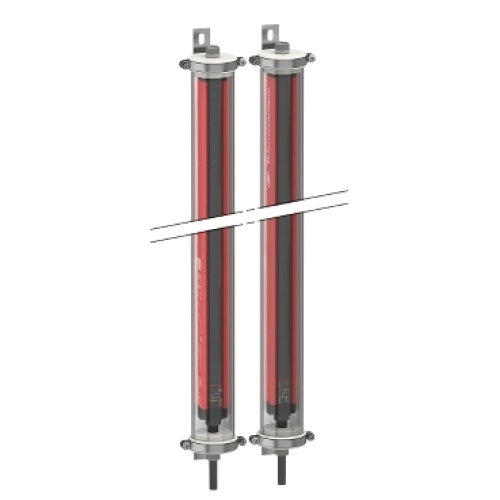

Schneider XUSL4E30H091LWC Transmitter-receiver system 3 – 17 m,0 – 8 m Type 4 SIL 3 For hand protection Safety light curtain type 4
$2,865$3,438 (-17%)
Schneider XUSL4E30H091LWC Transmitter-receiver system 3 – 17 m,0 – 8 m Type 4 SIL 3 For hand protection DC,Safety outputs OSSD,Solid-state,PNP 24 VDC 1 Multi-colour LED transmitter,2 Dual colour LEDs receiver DC,Automatic,Manual IP69K PMMA (polymethyl methacrylate): tube,Stainless steel AISI 316L: sealing plug,PVC…
Schneider XUSL4E30H091LWC Transmitter-receiver system 3 – 17 m,0 – 8 m Type 4 SIL 3 For hand protection DC,Safety outputs OSSD,Solid-state,PNP 24 VDC 1 Multi-colour LED transmitter,2 Dual colour LEDs receiver DC,Automatic,Manual IP69K PMMA (polymethyl methacrylate): tube,Stainless steel AISI 316L: sealing plug,PVC (polyvinyl chloride): cable Test,Muting through external safety module XPSLCMUT1160,LED display of operating modes and faults,Anti-condensation system Safety light curtain type 4
Specifications
| Manufacturer | Telemecanique |
|---|---|
| (Instrument-Sensor) Supply Voltage | 24 VDC |
| (Instrument-Sensor) Connection Type | Male Connector |
| (Instrument-Sensor) Output Signal Type | DC |
| (Instrument-Sensor) IP Protection | IP69K |
| (Instrument-Sensor) Type | Transmitter-Receiver System |
| (Instrument-Sensor) Type of Operator | DC |
| (Instrument-Sensor) Type of Operator | Automatic |
| (Instrument-Sensor) Type of Operator | Manual |
| (Instrument-Sensor) Standards | Type 4 SIL 3 |
| (Instrument-Sensor) Connection Type | 5 Pins Transmitter |
| (Instrument-Sensor) Connection Type | 8 Pins Receiver |
| (Instrument-Sensor) Indication | 1 Multi-Colour LED Transmitter |
| (Instrument-Sensor) Indication | 2 Dual Colour Leds Receiver |
| (Instrument-Sensor) Output Signal Type | Safety Outputs OSSD |
| (Instrument-Sensor) Output Signal Type | Solid-State |
| (Instrument-Sensor) Output Signal Type | PNP |
| (Instrument-Sensor) Size | 910 mm |
| (Instrument-Sensor) Application | For Hand Protection |
| (Instrument-Sensor) Measurement Response Time | 12.5 Ms |
| Component | Light Curtain |
| (Instrument-Sensor) Temperature Range | -10 – 55°C |
| (Instrument-Sensor) Temperature Range | -20 – 55°C |
| (Instrument-Sensor) Span | 3 To 17 M |
| (Instrument-Sensor) Span | 0 To 8 M |
Features
2 PNP outputs
Operating temperature range: -20 °C…+55 °C, Resistance to acidic and alkaline cleaning agents, and aliphatic hydrocarbons
