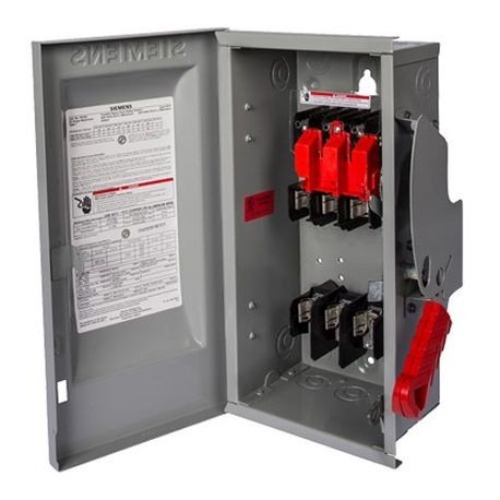

Siemens HF327S Fusible Heavy Duty Safety Switch – 800 Amp, 240 VAC, Three Pole, NEMA 4X
$13,265$15,918 (-17%)
Siemens HF327S Fusible Heavy Duty Safety Switch – 800 Amp, 240 VAC, Three Pole, NEMA 4X – 75″ x 43″ x 12″ (LxWxH)
Siemens HF327S Fusible Heavy Duty Safety Switch – 800 Amp, 240 VAC, Three Pole, NEMA 4X – 75" x 43" x 12" (LxWxH)
Specifications
| Voltage | 240 VAC |
|---|---|
| Enclosure NEMA Rating | NEMA 4X |
| Component | Fusible Disconnect Switch |
| Manufacturer | Siemens |
| Enclosure Disconnect Type | Heavy Duty Safety Switch |
| Current | 800 Amp |
| Poles | 3 Pole |
Features
Heavy Duty Safety Switches are available in 30 -1200 A ratings, in Type 1, 3R, 12 and 4X enclosures and in 2, 3, 4 and 6 pole versions.
Fusible models are available for either 240 V AC max. or 600 V AC or 600 V DC applications. Non-fusible versions are available in 600 V AC max ratings and can be used on any AC voltage through 600 V AC.
Fusible versions accept Class H fuses as standard in 30-600 A ratings and can be converted to Class R fusing only with a field installed kit. 600 V rated fusible switches in 30-600 A ratings can be converted to accept Class J fuses by simply moving their load base. 800 and 1200 A fusible switches accept Class L fuses.
All accept aux contact kits. Neutrals are either factory installed or can be field added. All are UL98 listed (rotary switches are UL508 listed and solar disconnects are listed as UL1741 PV switches).
