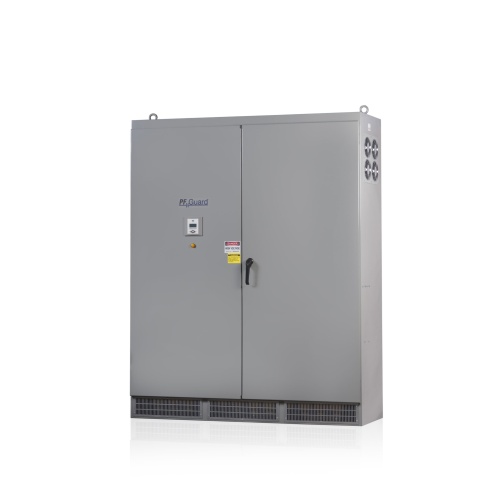

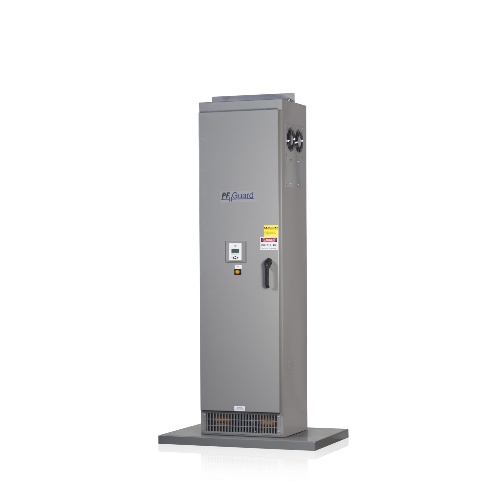

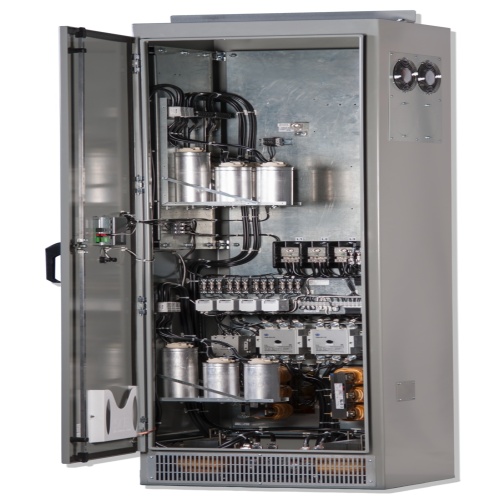

TCI PFCA0600AW1B140C PF Guard Capacitor Bank – 600 kVAR, 480 VAC, UL Type 1, Full kVAR Steps
$44,503$53,403 (-17%)
TCI PFCA0600AW1B140C – The PFGuard is an automatic capacitor bank, UL listed per 508A , Available in Type 1, Type 12, Optional Step Fuse monitor, Input protection options include, circuit breaker, fuse block, and fused disconnect switch, Input controller with up to 12 step outputs, Detuned cap bank allows for harmonic…
TCI PFCA0600AW1B140C – The PFGuard is an automatic capacitor bank, UL listed per 508A , Available in Type 1, Type 12, Optional Step Fuse monitor, Input protection options include, circuit breaker, fuse block, and fused disconnect switch, Input controller with up to 12 step outputs, Detuned cap bank allows for harmonic protection to the caps and hassle free operation, Available half and full step operation for finer PF control, 100kA SCCR with fusing. Built-in, detuned, anti-resonance reactor for extra layer of protection from harmonics and equipment failure. Typical Applications: Large Industrial, Heavy Manufacturing, Wood Processing, Steel/Paper Mills, Tire/Rubber, Refineries, Mining
Specifications
| Manufacturer | TCI |
|---|---|
| Component | Capacitor Bank |
| Reactive Power | 600 Kvar |
| Voltage Rating | 480 VAC |
| Enclosure | UL Type 1 |
| Series | PF Guard |
| Number of Steps | 6 Steps |
| kVAR Steps | 100 Kvar Steps |
| Input Protection | Circuit Breaker |
Features
The PF Guard offers an automatic switching design, providing an optimized solution for your application.
A detuned, antiresonance reactor is built into the unit for an extra layer of protection from harmonics and to prevent equipment failure, reduce costs and increase the life of the system.
Automatic switching design
Built-in, detuned, anti-resonance reactor for extra layer of protection from harmonics and equipment failure
cULus Listed
Half-Step switching to allow for finer PF control
