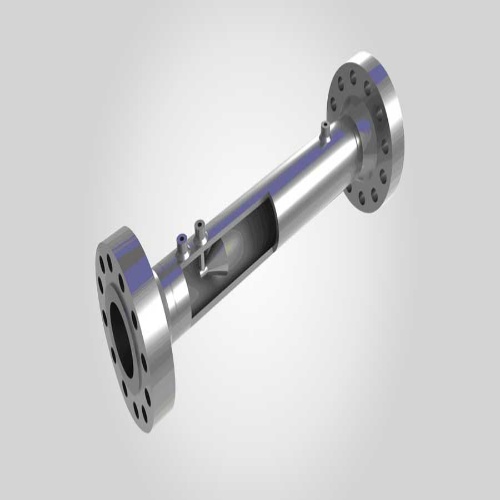

Tek-Trol 1620A-0080-C-09-B-03-C0-D-00-03-A-XX-A-01-A – Tek-DP 1620A Cone Flow Meter, 304L Stainless Steel, 3″, ± 0.5%, #600 ANSI Raised Face Weld Neck
$7,815
Tek-Trol 1620A-0080-C-09-B-03-C0-D-00-03-A-XX-A-01-A – Tek-DP 1620A Cone Flow Meter is an advanced differential pressure instrument, which is ideal for use with liquid, steam, gas media in rugged conditions where accuracy, low maintenance, cost are important. With its DP built-in flow conditioning design, the Cone is…
Tek-Trol 1620A-0080-C-09-B-03-C0-D-00-03-A-XX-A-01-A – Tek-DP 1620A Cone Flow Meter is an advanced differential pressure instrument, which is ideal for use with liquid, steam, gas media in rugged conditions where accuracy, low maintenance, cost are important. With its DP built-in flow conditioning design, the Cone is especially useful in tight-fit and retrofit installations in which the long runs of straight pipe required by Orifice Plates, Venturi Tubes, and other technologies are either impractical or unavailable.
Specifications
| Manufacturer | Tek-Trol |
|---|---|
| (Instrument-Sensor) Size | 3" |
| Component | Cone Flow Meter |
| (Instrument-Sensor) Measurement Accuracy | 0.75% |
Features
Accuracy up to ±0.5% of flow rate.
Suitable for 2” to 48” with flanges rating from #150 to #2500 as per ASME.
Simple, robust and reliable.
Extremely immune to flow disturbances.
Eliminates straight run requirements.
Minimize metering footprint and reduce weight.
Maximum installation flexibility.
Low cost and minimal maintenance.
Suitable for difficult or severe applications.
High repeatability.
Full optional verification system ‘PrognosisTM’ available.
