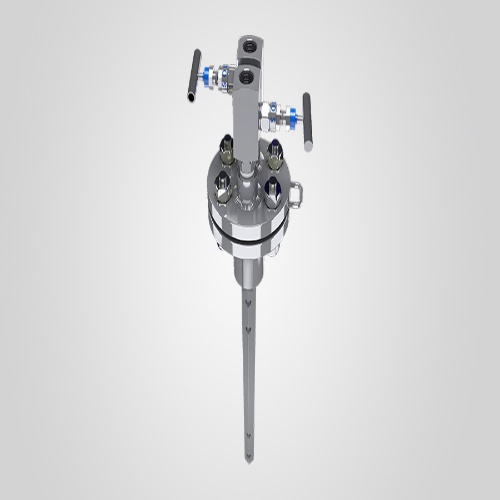

Tek-Trol 1650A-F-G-300-S-01-A-02-A-B-O-01 – Tek-DP 1650A Self-Averaging Flow Meter, 316 Stainless Steel, 12″, ± 1%, #150 ANSI
$5,790
Tek-Trol 1650A-F-G-300-S-01-A-02-A-B-O-01 – The Tek-DP 1650A DProbar is a multiport self-averaging flow meter (SAFM). Its classical and modern proven design is associated with averaging pitot tubes for clean process fluid measurement applications. It is a primary flow meter for measuring gas, liquid and vapors flowing…
Tek-Trol 1650A-F-G-300-S-01-A-02-A-B-O-01 – The Tek-DP 1650A DProbar is a multiport self-averaging flow meter (SAFM). Its classical and modern proven design is associated with averaging pitot tubes for clean process fluid measurement applications. It is a primary flow meter for measuring gas, liquid and vapors flowing in the pipelines and ducts based on principles of differential pressure measurement (DP). The diamond-shaped multiport design is available with identical up and downstream ports for bi-directional flow measurement applications.
Specifications
| Manufacturer | Tek-Trol |
|---|---|
| (Instrument-Sensor) Measurement Accuracy | 0.60% |
| (Instrument-Sensor) Size | 12" |
| Component | Self-Averaging Flow Meter |
| (Instrument-Sensor) Medium | Gases |
Features
No Moving
Velocity Sampled at several points to provide average flow rate.
Accuracy up to ≤ 5 +/- 1.0% of the actual flow rate.
Repeatability 0.1%.
Unique diamond profile shape proven to offer good flow separation.
High flow turndown.
Easy to install and Cost Effective.
Stable flow co-efficient (K).
Highly durable and stable.
Diamond Bar design ensures optimum strength.
Low permanent pressure loss.
Multiport Averaging: Improved performance with asymmetric flow profiles.
Suitable for wide range of pipe sizes.
Allows insertion into pressurized pipes (Via a full port valve and hot tap).
Eliminates imposed piping between the primary element and DP transmitter.
Available for all pipe sizes and in a wide range of materials.
