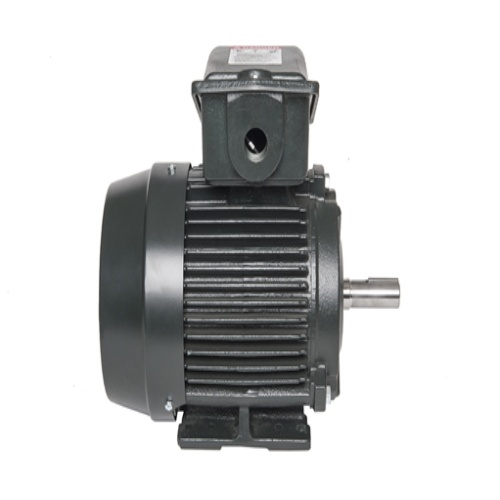

Toshiba 0506SDSR41A-P3 50 HP Top Mount Electric Motor, 230/460V 3Ph
$4,314$5,176 (-17%)
Toshiba 0506SDSR41A-P3 – 60 Hz – Nema Design B – Motor Frame Model: 365T
Toshiba 0506SDSR41A-P3 – 60 Hz – Nema Design B – Motor Frame Model: 365T
Specifications
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
|---|---|
| Motor Voltage Phases | 3 Phase |
| Motor Insulation Class | Class F Insulation |
| Motor Horsepower | 50 HP |
| Motor Frame Model | 365T |
| Motor RPM's | 1200 RPM |
| Motor Frequency | 60 Hz |
| Motor Duty Cycle | Continuous Duty |
| Motor NEMA Design | NEMA Design B |
| Motor Voltage | 230 Volt |
| Motor Voltage | 460 Volt |
| Manufacturer | Toshiba Motors |
| Motor Frame Construction | Cast Iron |
| Motor Amperage (Full Load) | 60 Amp |
| Motor Amperage (Full Load) | 120 Amp |
Features
Toshiba’s general purpose, medium voltage weather protected I motors include a high torque and low vibration design, meeting the industry’s ever-increasing need for improved energy conservation and product reliability.
With our in-house design, engineering, and manufacturing capabilities, we can completely customize each motor to your specific application requirement.
