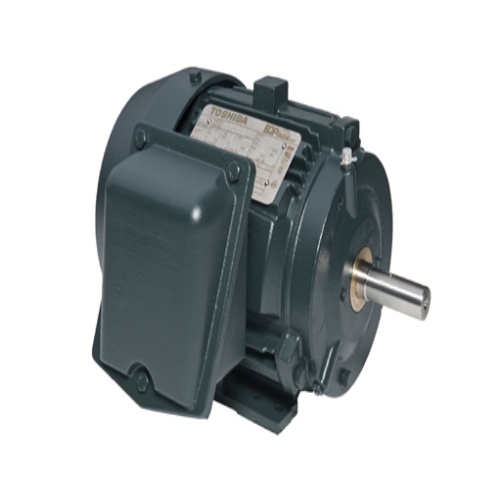

Toshiba B2503FLG3BSHJL 250 HP IEEE 841 Electric Motor, 460V, 3Ph
$23,873$28,647 (-17%)
Toshiba B2503FLG3BSHJL – 60 Hz – Nema Design B – Motor Frame Model: N449TS
Toshiba B2503FLG3BSHJL – 60 Hz – Nema Design B – Motor Frame Model: N449TS
Specifications
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
|---|---|
| Motor Voltage Phases | 3 Phase |
| Motor Insulation Class | Class F Insulation |
| Motor Horsepower | 250 HP |
| Motor Frame Model | N449TS |
| Motor Frequency | 60 Hz |
| Motor Duty Cycle | Continuous Duty |
| Motor NEMA Design | NEMA Design B |
| Motor Voltage | 460 Volt |
| Motor RPM's | 3600 RPM |
| Manufacturer | Toshiba Motors |
| Motor Amperage (Full Load) | 270 Amp |
| Motor Frame Construction | Cast Iron |
Features
Toshiba’s general purpose, totally enclosed fan cooled, NEMA Premium® efficiency, EQP Global® SD motor series is Toshiba’s next-generation motor product line.
This cutting-edge motor product line is designed to meet or exceed the competitive demands of the global market, as well as the amended integral horsepower (HP) rule IHMR 2016, while maintaining the high reliability and quality expected from Toshiba.
Designed for severe duty applications and built on over 20 years of success with our EQPIII motor series, the EQP Global® SD features multiple new design enhancements that make it one of the lowest cost-of-ownership products in the industry.
