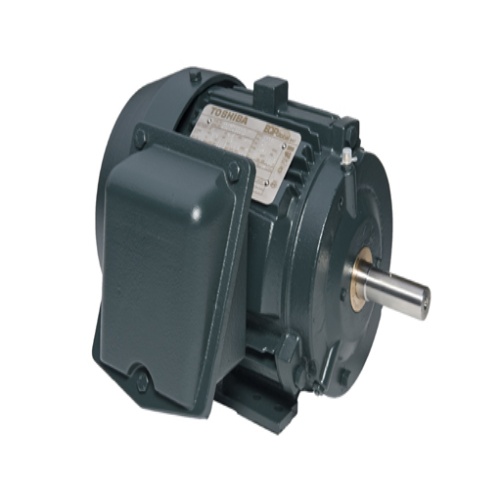

Toshiba B2504FLF3BSHJL 250 HP IEEE 841 Electric Motor, 460V
$19,679$23,615 (-17%)
Toshiba B2504FLF3BSHJL – 60 Hz – Nema Design B – Motor Frame Model: N449T
Toshiba B2504FLF3BSHJL – 60 Hz – Nema Design B – Motor Frame Model: N449T
Specifications
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
|---|---|
| Motor Voltage Phases | 3 Phase |
| Motor Insulation Class | Class F Insulation |
| Motor Frame Model | N449T |
| Motor Horsepower | 250 HP |
| Motor Frequency | 60 Hz |
| Motor Duty Cycle | Continuous Duty |
| Motor NEMA Design | NEMA Design B |
| Motor Voltage | 460 Volt |
| Motor RPM's | 1800 RPM |
| Manufacturer | Toshiba Motors |
| Motor Frame Construction | Cast Iron |
| Motor Amperage (Full Load) | 276 Amp |
Features
Toshiba’s general purpose, totally enclosed fan cooled, NEMA Premium® efficiency, EQP Global® 840 motor series is Toshiba’s next-generation motor product line.
This cutting-edge motor product line is designed to meet or exceed the competitive demands of the global market, as well as the amended integral horsepower (HP) rule IHMR 2016, while maintaining the high reliability and quality expected from Toshiba
The EQP Global® 840 specifically addresses the needs of the mill and chemical industries, incorporating many key features of an IEEE-841 motor. Building on over 20 years of success with our EQPIII motor series, the EQP Global® 840 features design enhancements on the rotor, frame, brackets, fan, and bearings.
