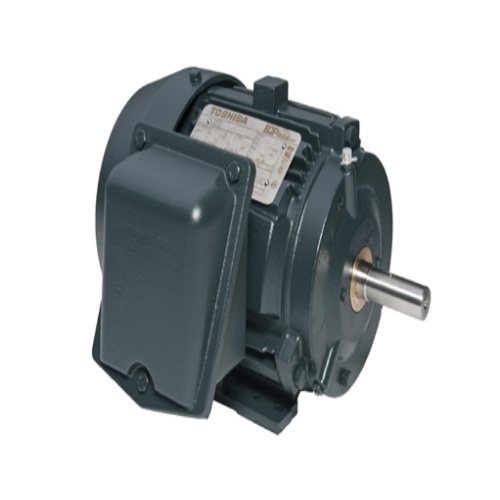

Toshiba B3006FLF3OSHJL 300 HP IEEE 841 Electric Motor, 575V, 3Ph
$29,710$35,653 (-17%)
Toshiba B3006FLF3OSHJL – 60 Hz – Motor Frame Model: N449T
Toshiba B3006FLF3OSHJL – 60 Hz – Motor Frame Model: N449T
Specifications
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
|---|---|
| Motor Voltage Phases | 3 Phase |
| Motor Frame Model | N449T |
| Motor Horsepower | 300 HP |
| Motor Voltage | 575 Volt |
| Motor RPM's | 1200 RPM |
| Motor Frequency | 60 Hz |
| Manufacturer | Toshiba Motors |
| Motor Frame Construction | Cast Iron |
| Motor Amperage (Full Load) | 292 Amp |
Features
Toshiba’s general purpose, totally enclosed fan cooled, NEMA Premium® efficiency, EQPIII-841 motor series addresses the special requirements of the petrochemical industry where motor performance and reliability are imperative.
This product line was built using the cornerstone of the Toshiba motor product offering as a base, and it is designed for indoor and outdoor use in the harshest environments where premium performance and reliability are a must.
Its performance offers 20 to 1 constant torque, oversized bearings, IP56 protection, Class F insulation system and NEMA Premium® design, meeting the NEMA energy efficiency requirements as listed in NEMA MG1 Table 12-12. These motors are built to meet or exceed IEEE standard 841 specifications and feature a labyrinth seal on both DE and ODE.
