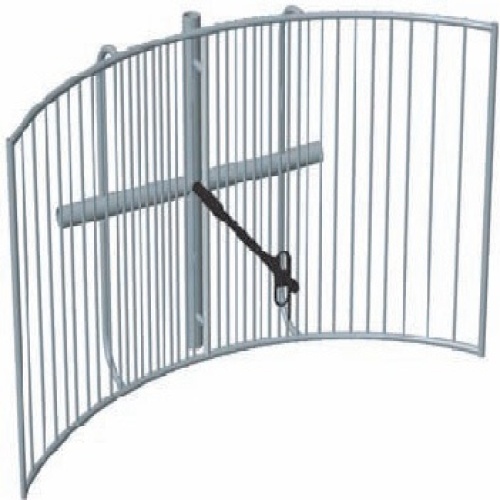

Wavelink PROgrid549-16-N4 Professional Grade Grid – 549-609 Mhz, 16.5 dBi
$2,542
Wavelink PROgrid549-16-N4 is equipped with a standard feed line length of 5' LMR400 UltraFlex cable and N-Female connector. – 67.5″ x 38″ (LxW)
Wavelink PROgrid549-16-N4 is equipped with a standard feed line length of 5' LMR400 UltraFlex cable and N-Female connector. – 67.5" x 38" (LxW)
Specifications
| Component | Antenna |
|---|---|
| Manufacturer | Wavelink |
| Sub Component | Grid |
| Antenna Frequency | 549-609 Mhz |
| Antenna Gain | 16.5 Dbi |
Features
The PROGRID549-16 is designed to meet the demanding requirements of a professional grade, half parabolic antenna . This antenna provides 16.5 dBi gain across the operating range of 549-609 MHz with a VSWR of 1.5:1 or less.
This rugged unit is manufactured using only high strength 6061 T6 aluminum
all grid components are fully welded to ensure continuous optimum performance in the most severe operating conditions
The grid is shipped fully assembled. The directive feed element is easily installed and permits either Vertical or Horizontal polarization. (A selection of tuned feed elements is available, providing a choice of different operating frequencies utilizing the common grid. Contact Sales for your specific application requirements) The design incorporates a 5’ integral feed cable allowing ease of installation and ensuring long-term dependability. The antenna is finished with black anodizing to protect against environmental degradation.
