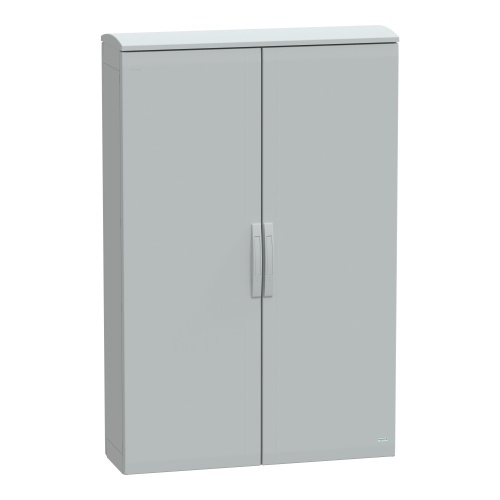

Schneider Electric NSYPLAT15103G Thalassa PLA Floor-standing Fiberglass Reinforced Polyester Enclosure – IP44, 59.06″ x 39.37″ x 12.6″ (HxWxD)
$1,105$1,326 (-17%)
Schneider Electric NSYPLAT15103G Thalassa PLA is a polyester reinforced with fiberglass enclosure designed for floor-standing installation. It features a solid front door with a 4-point lock and a 5 mm double bar handle insert. The enclosure offers accessibility from the rear, top, and front, with two doors that open…
Schneider Electric NSYPLAT15103G Thalassa PLA is a polyester reinforced with fiberglass enclosure designed for floor-standing installation. It features a solid front door with a 4-point lock and a 5 mm double bar handle insert. The enclosure offers accessibility from the rear, top, and front, with two doors that open on both the right and left side. It has a nominal depth of 12.60 in (320 mm), height of 59.06 in (1500 mm), and width of 39.37 in (1000 mm). With an electrical insulation class of Class II and IK10 degree of protection, it provides excellent durability and resistance against impacts. The enclosure is also fire-resistant up to 1760 °F (960 °C) according to IEC 62208 standards.
Specifications
| Enclosure Mount Type | Free-Standing |
|---|---|
| Enclosure Number of Doors | 2 Door |
| Manufacturer | Schneider Electric |
| Enclosure Width | 39.37" |
| Enclosure Depth | 12.6" |
| Enclosure Door Type | Solid |
| Component | Non-Metallic Enclosure |
| Line | Thalassa PLA |
| Enclosure Height | 59.06" |
| Enclosure Composition | Fiberglass Reinforced Polyester |
| Enclosure Impact Rating | IK10 |
| Enclosure Latch Type | 4-Point Lock |
Features
Thalassa PLA Floor standing polyester enclosure, version PLAT
1499 x 1000 x 320 mm
With open top canopy
4-Point door locking system with 5-mm double-bar locks
Polyester reinforced with fiberglass body
Protection IP 44, IK10, Grey RAL 7035.
