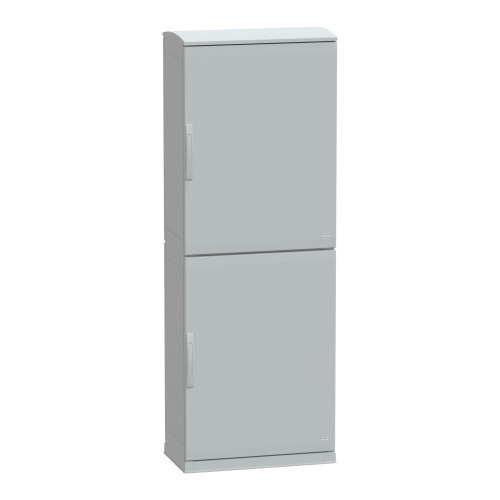

Schneider Electric NSYPLAZT2074G Thalassa PLA Floor-standing Fiberglass Reinforced Polyester Enclosure – IP44, 78.74″ x 29.53″ x 16.54″ (HxWxD)
$1,976$2,371 (-17%)
Schneider Electric NSYPLAZT2074G is a Thalassa polyester reinforced with fiberglass enclosure. It features a 4-point lock with a 5 mm double bar insert handle and solid front door. The enclosure allows accessibility for operation from the bottom, top, rear, and front. It has a floor-standing mount and comes with two…
Schneider Electric NSYPLAZT2074G is a Thalassa polyester reinforced with fiberglass enclosure. It features a 4-point lock with a 5 mm double bar insert handle and solid front door. The enclosure allows accessibility for operation from the bottom, top, rear, and front. It has a floor-standing mount and comes with two doors. With its Class II electrical insulation and IK10 degree of protection, it provides durability and safety. The enclosure's dimensions are 16.54in x 78.74in x 29.53in (420mm x 2000mm x 750mm). It also offers fire resistance up to 1760°F (960°C).
Specifications
| Enclosure Mount Type | Free-Standing |
|---|---|
| Enclosure Number of Doors | 2 Door |
| Manufacturer | Schneider Electric |
| Enclosure Height | 78.74" |
| Enclosure Width | 29.53" |
| Enclosure Door Type | Solid |
| Component | Non-Metallic Enclosure |
| Line | Thalassa PLA |
| Enclosure Depth | 16.54" |
| Enclosure Composition | Fiberglass Reinforced Polyester |
| Enclosure Impact Rating | IK10 |
| Enclosure Latch Type | 4-Point Lock |
Features
Fiberglass reinforced polyester floor-standing enclosure.
Suitable for indoor or outdoor use.
Harsh environment resistant.
Long life durability in a wide range of temperatures.
Version with canopy, maintaining the quality of the seal outdoors.
Version with integrated plinth and open bottom for easy cable entry.
